New Release DASIFN+ Board 5117243-2U

5117243-2U
Computed Tomography (CT)
CTe/CTe Dual
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Field Replaceable Unit (FRU)
  • Higher reliability and efficiency
  • Easy to connect / disconnect
  • Compact size

Descripción del producto

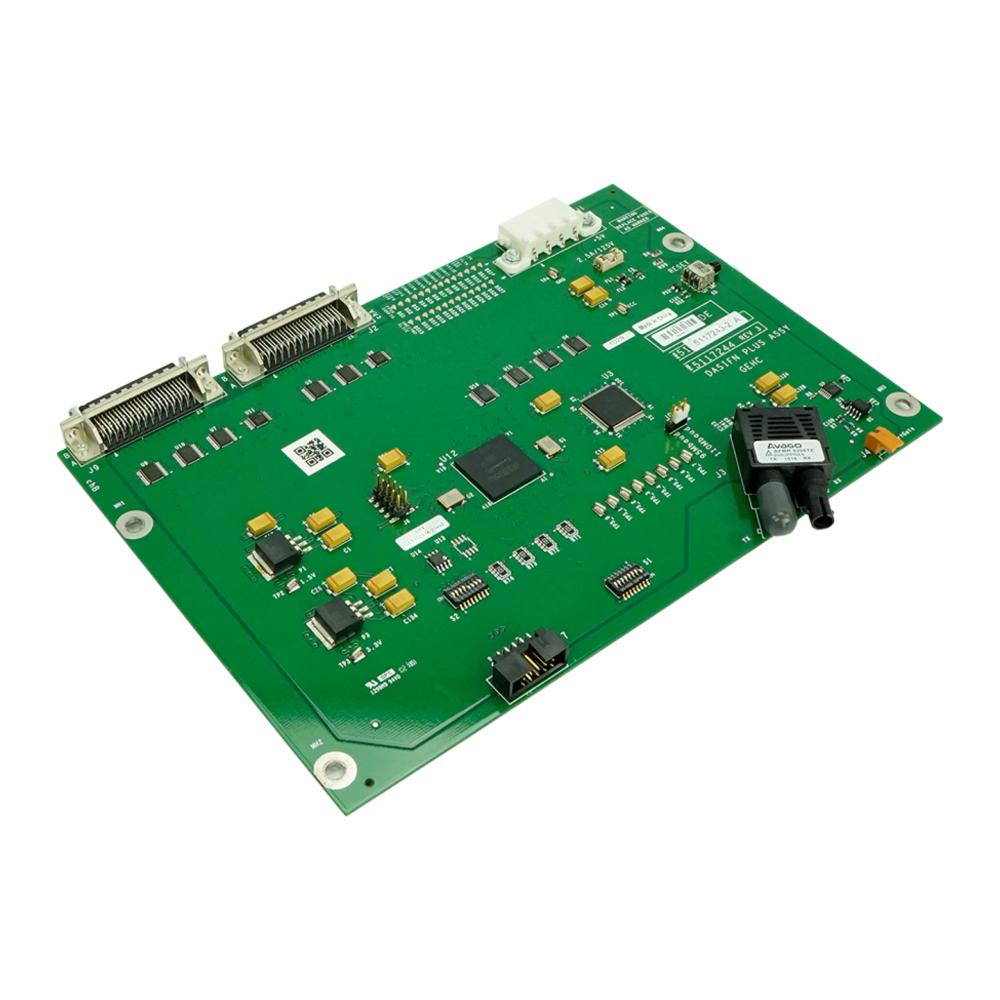

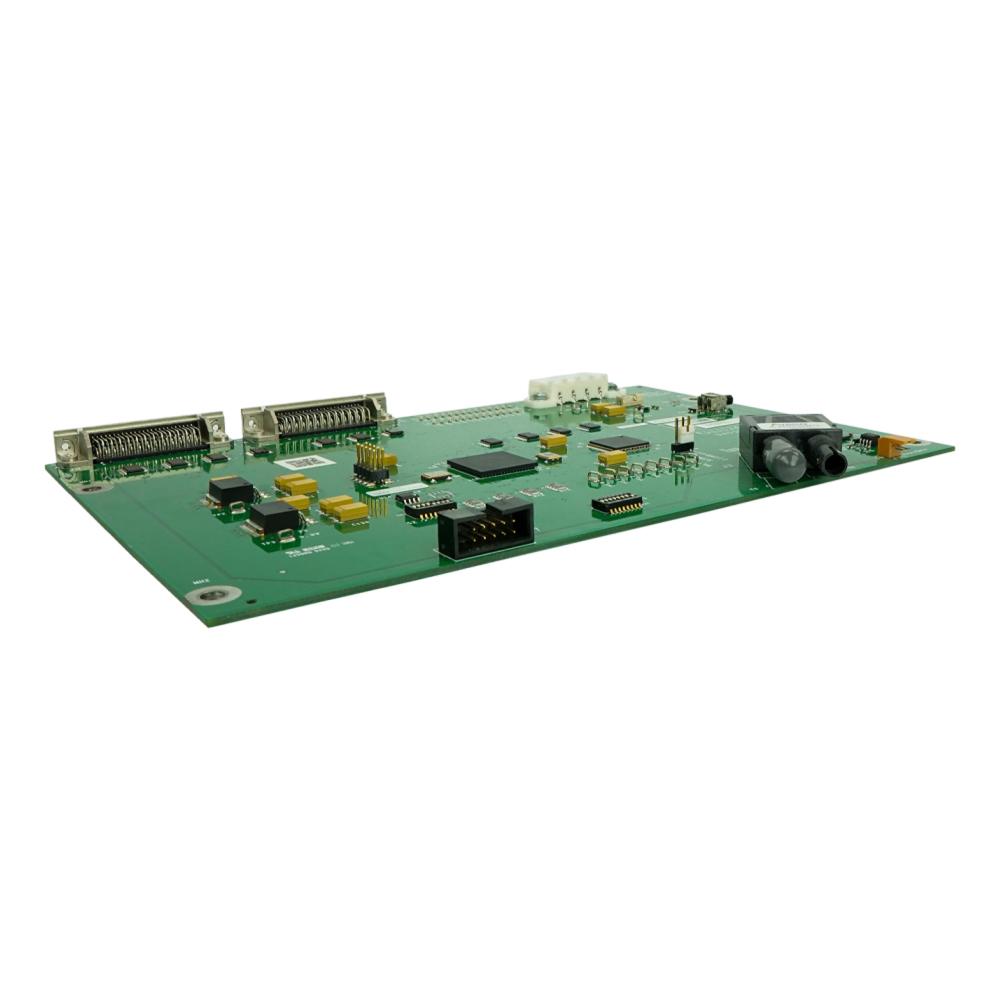

The New Release Data Acquisition System Interface Board (DASIFN) Plus Board is part of the DASIFN plus pannel assembly. It is the main interface between DCP/DTRF and the Operator Console and receives scan data in a high-speed serial stream from the slip ring interface and transmits it to the DBPCI (DAS Buffer PCI) Board. The board has a reset button for resetting the DASIFN PLUS Board.The input power required in the board is +5 VDC. The Board has status LED's for both power and other control signals. The board has HFBR-5205 transceiver with 1300 nm, 62.5/125 glass fiber optic cable for the slip ring interface and two 50 pin SCSI connecters to interface with DBPCI board.

5117243-2U

  • Características adicionales

    • On Board Status LED's
    • No calibration requirements
