RFSB2 RoHS 1.5T 6300662-R

6300662-R
Resonancia Magnética
Other Magnetic Resonance Imaging (MRI)
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • RoHS Compliant
  • Easily portable
  • Lightweight
  • Easy to use

Otras opciones de compra


Descripción del producto

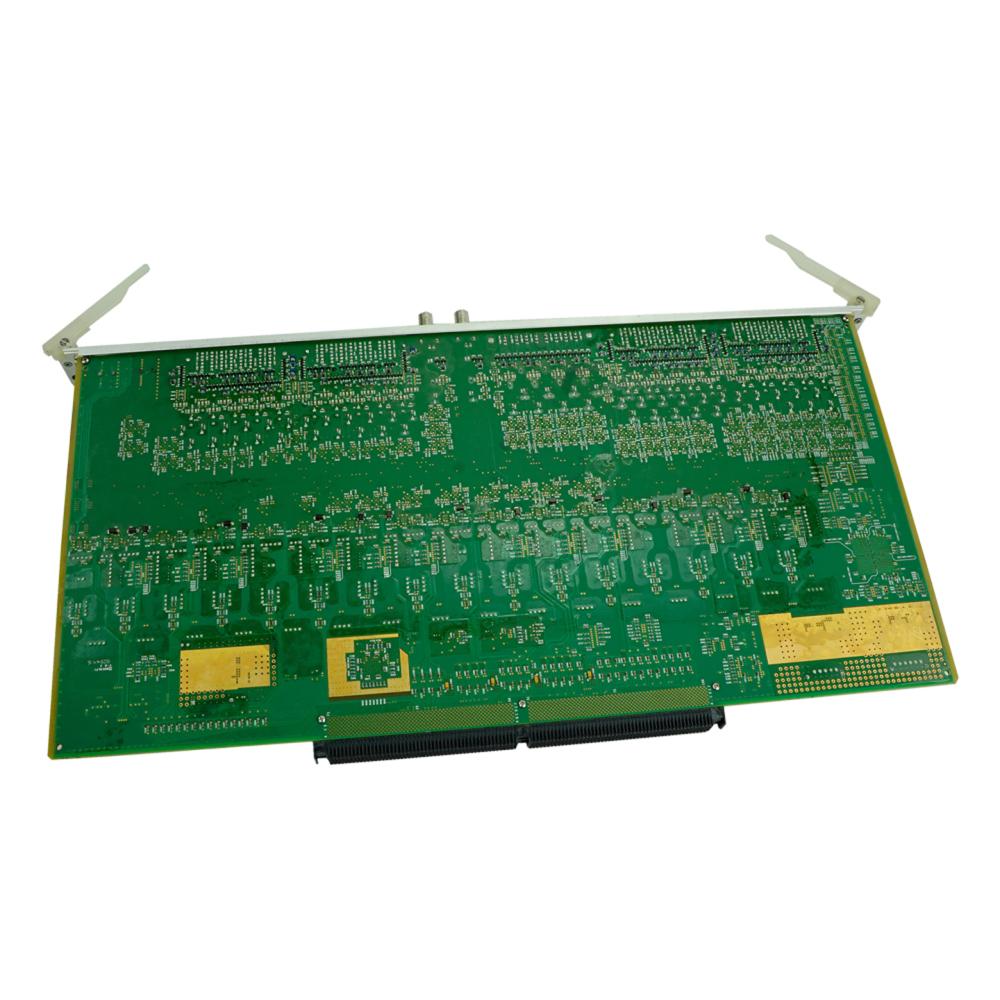

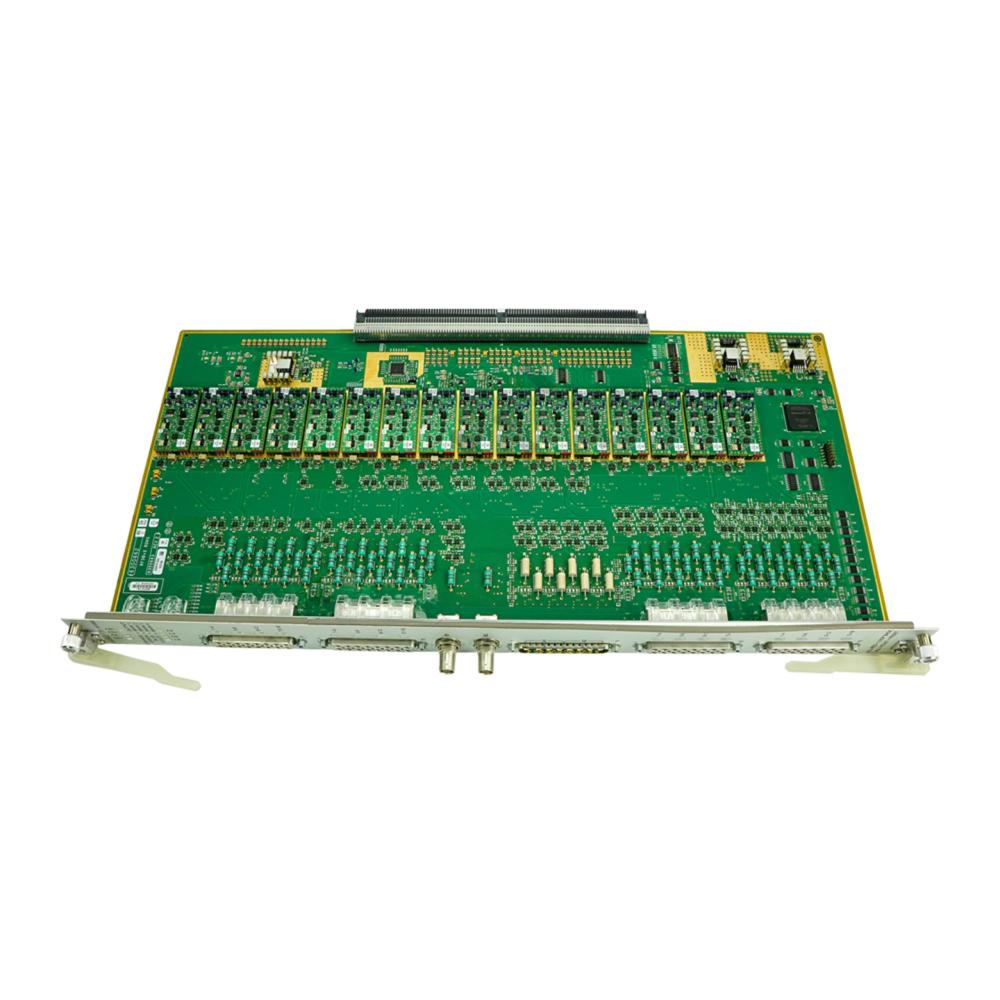

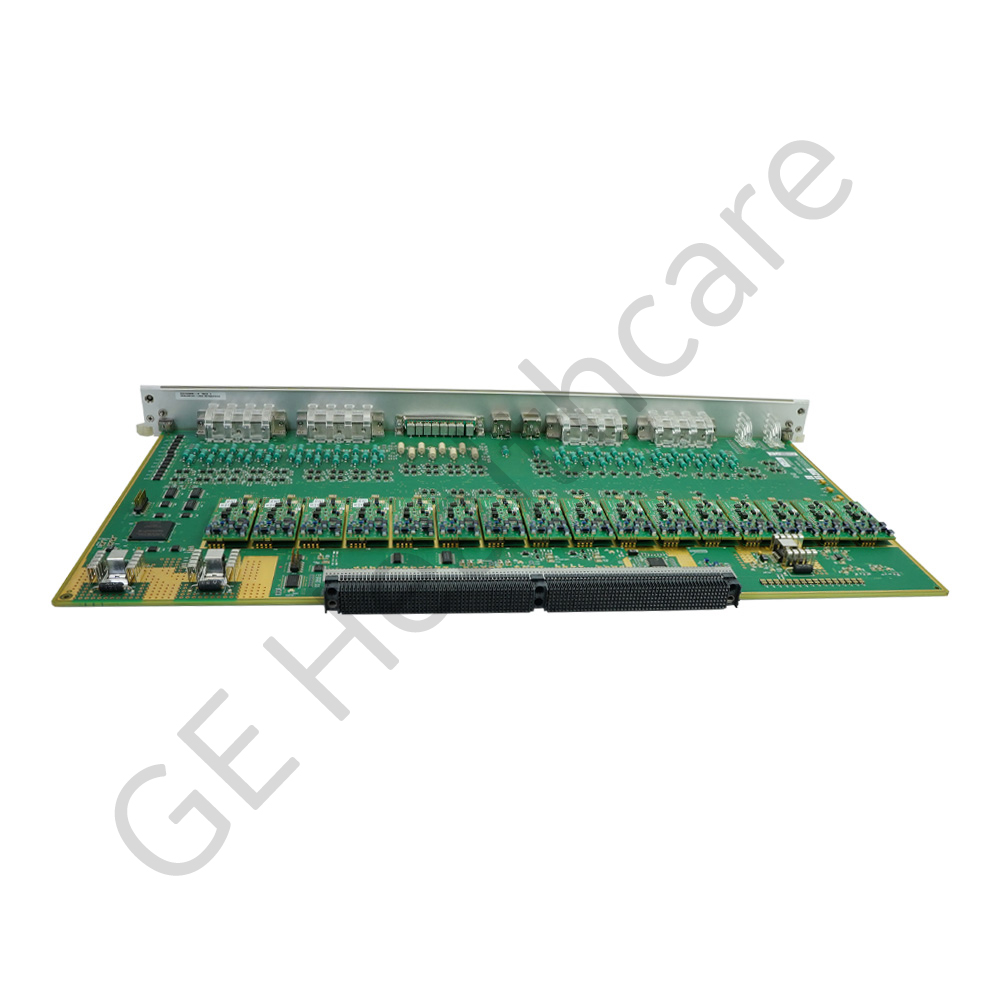

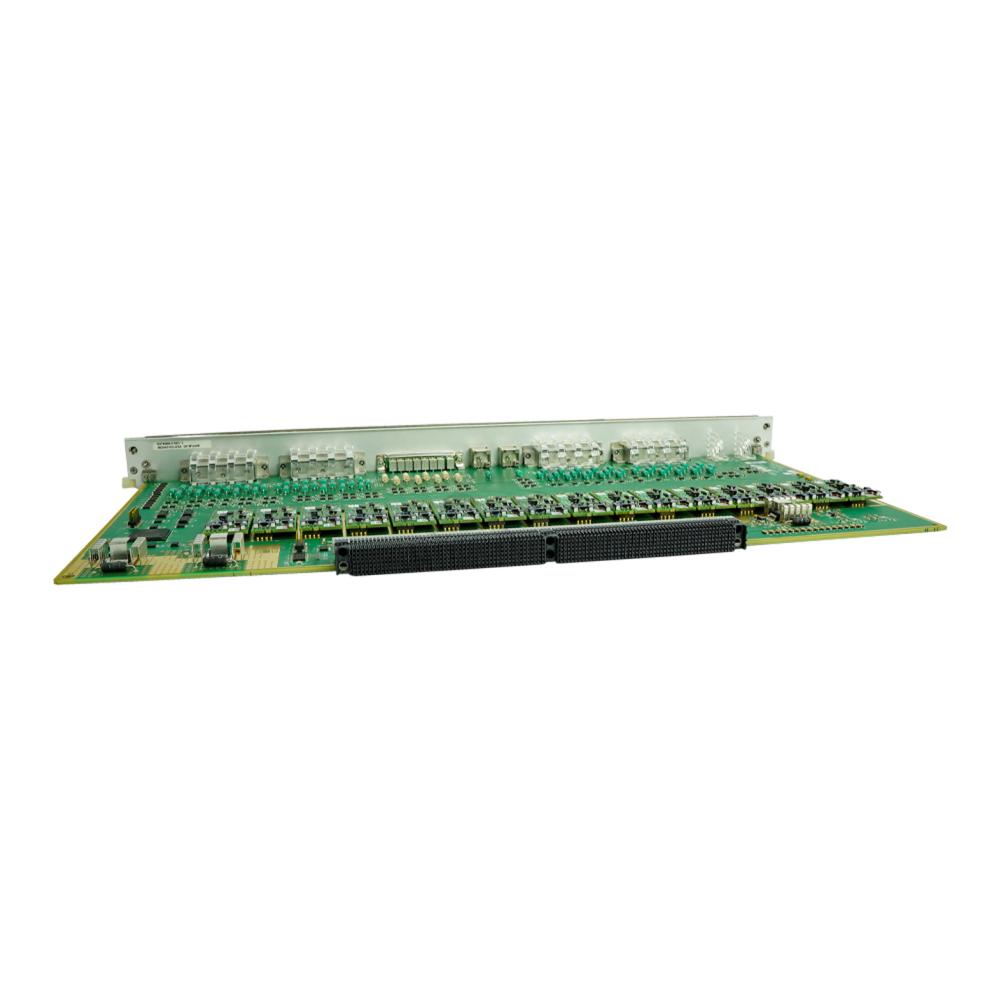

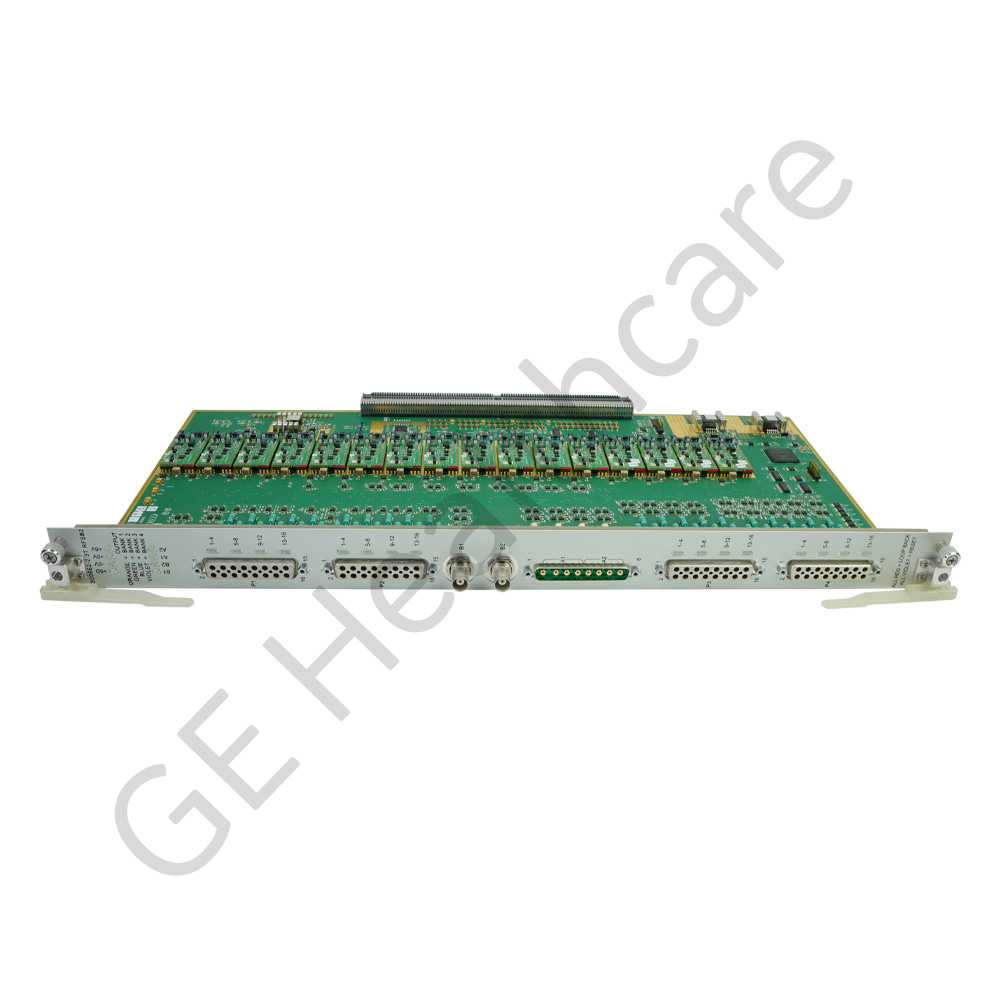

The RF Switch Select Board VCP Version 2 (RFSB2) resides in the RF Hub sub-assembly, which is part of DVMR. It's main function is to route and convert input MRI signals to 16 channels of intermediate frequency (IF) receivers. The RFSB2 interfaces to MRI coils through the coil interface ports and a gain stage. Once the MRI signals reach the RFSB2, they are routed according to software command, and subsequently down-converted to the desired IF. Finally, the signals are routed to 16 channel IF receivers. The RFSB2 consists of a 12 layer PCB board assembled to its own aluminum front panel with ejectors. The panel provides EMI shielding for RF Hub and also provides mechanical support for the RF input connectors, and allows viewing of the LED indicators. All materials and fasteners are non-magnetic and RoHS compliant.

  • Características adicionales

    • High performance
    • Reliable and durable
