Hand Switch Kit

5484990
X-Ray
Brivo XR115
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Field Replaceable Unit (FRU)
  • Easy to operate
  • Multi Operation
  • Easy to connect/disconnect

Descripción del producto

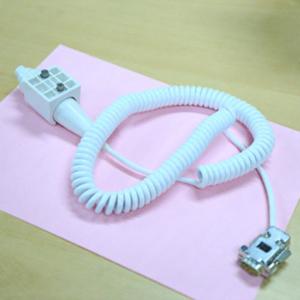

This Hand Switch is an electrical device that includes a two stage Actuator switch (Level I for PREP and Level II for Exposure). These switches are used by a technician to activate prepare and exposure commands. This unit can be connected using the provided 9 pin D-Sub male connector. During PREP mode pin 1 and 4 remains shorted while in Exposure mode pins 1, 2 and 4 remain shorted. The Hand Switch Kit comes with a mounting holder with two M4 threaded inserts through which the holder can be easly mounted over the system using appropriate screws (M4-0.7, X6mm Long) and washers. This Hand Switch is a Field Replaceble Unit (FRU) and is used with Brivo XR115 systems.

  • Características adicionales

    • Two Stage Actuator
    • Coiled Cable
    • RoHS Complaint
