LE9 BEP6.2 5380000-2-R

5380000-2-R
Ultrasonido
LOGIQ E10
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Lightweight
  • Reliable and durable
  • Easily portable
  • Smooth corners and curves

Otras opciones de compra


Descripción del producto

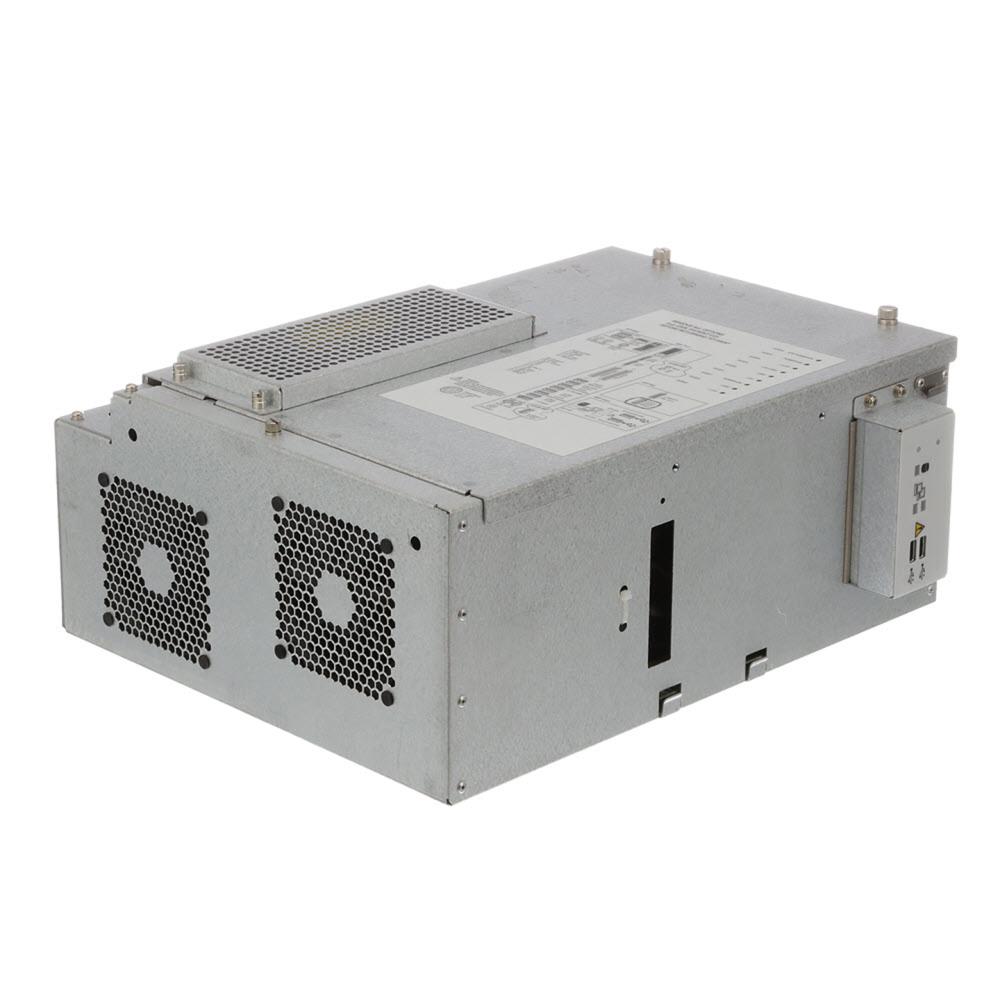

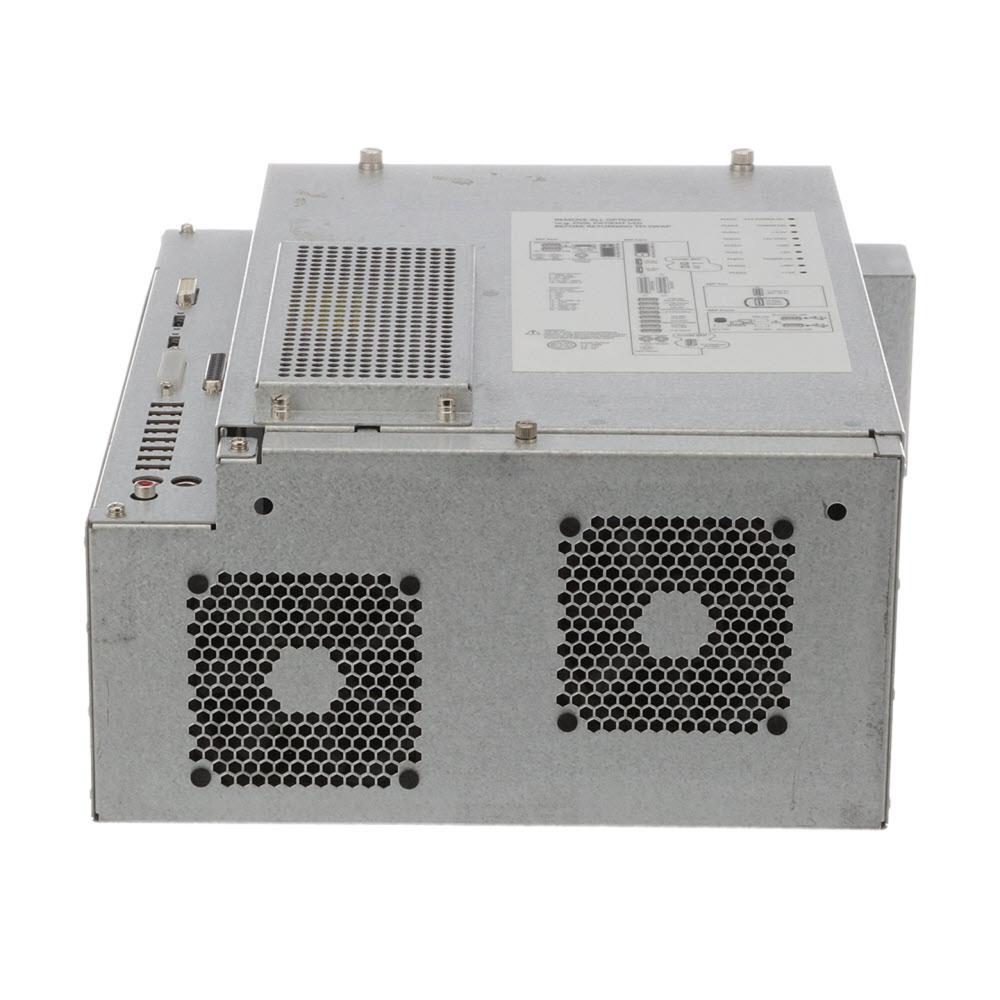

The LE9 BEP6.2 is a Back End Processor (BEP) that is used in the ultrasound machines. It is mainly used in Logiq E9, which is a digital beamforming system. The signal flow travels from the probe connector panel to the front end electronics, then to the back end processor and finally the results are displayed on the monitor. The system configuration is stored on the hard drive inside the BEP and all necessary software loads from the hard drive during power up. The back end processor is turned ON and starts to load the software. The assembly consists of a power supply, input/output board, 160GB hard drive, ADD Video Card for DVI, DVR Card and front panel LEDs. Beware that the main power supply, extended power shutdown and back end processor may be energized even if the power is turned off when the cord is still plugged into the AC outlet. It has the individual label with the product details, environment label for packaging and a Quality Assurance (QA) seal. All these are arranged and kept in a carrying case with the shipment label. It is used in a wide range of medical equipment like 1-5T MR450W 32CH W and Logiq series, among others.

  • Características adicionales

    • Low environmental impact
    • Enhanced durability
    • Dimensionally stable
    • Low maintenance required
    • Easy to use
    • Increased life span
    • High performance
