Cable TS Top Front Positioning Global Table

5330774
5120574
Computed Tomography (CT)
Lightspeed VCT 32
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Good Current Carrying Capacity
  • High quality UL1007 rated wires
  • Heat-Shrink Tube Protection
  • Pre-lebeled

Descripción del producto

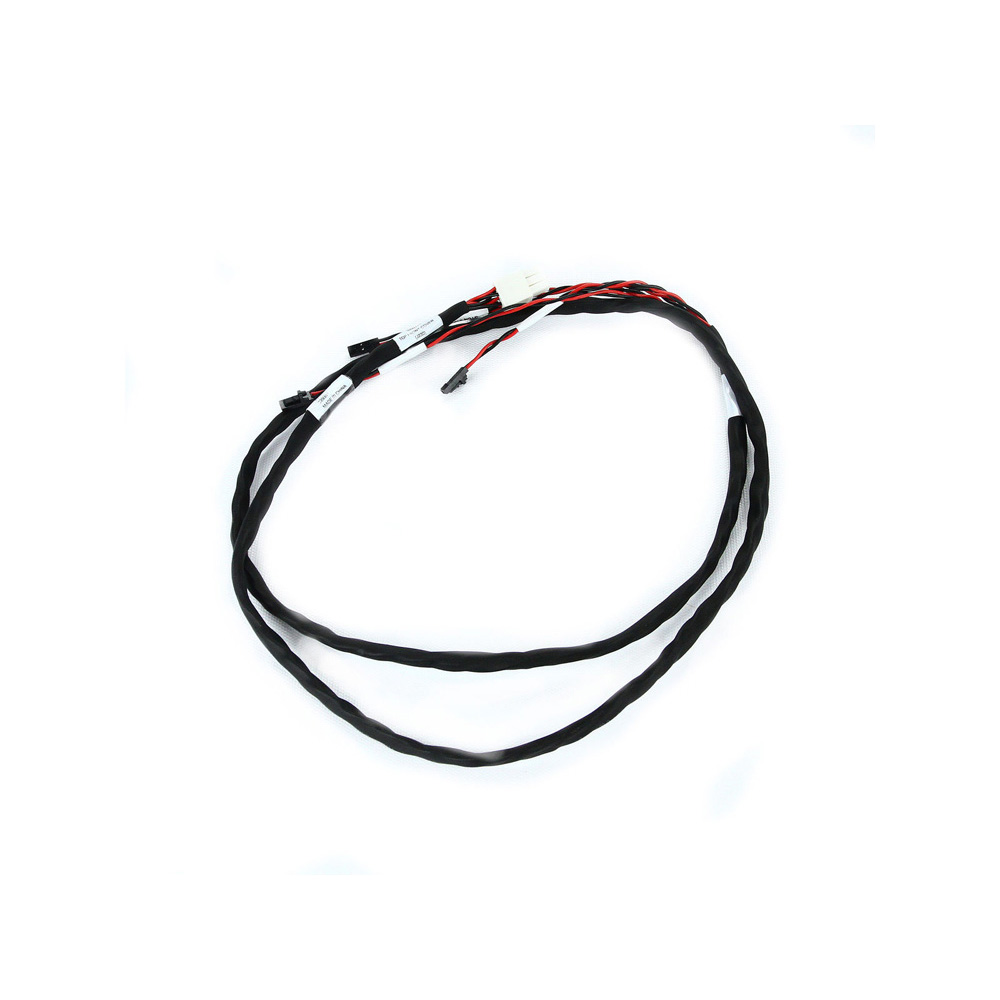

This 1460 mm long twisted pair cable harness comprises of four identical 2 position-1 row connector at one end and one 9 position-3 row connector at the other end. The connection between the connectors are established using high quality UL1007, 22AWG wires, which are color coded in red and black. This cable assembly is used in the front positioning Global Table assembly (GTTS) and comes with pre-labeled information about the part number and cable connection. Connector A1 is to be connected to GTCN J15 using a 1460 mm long cable, connector A2 to GTCN J16, connector A3 to GTCN J17, connector A4 to GTCN J18 and all wires from these connectors goes to connector A4 which is to be connected to J230. This cable assembly is isolated and protected using heat shrink tube which also provides good abration resistace to the cable. This cable harness is compatible for use in the assemblies of GT1700 N9 and GT2000 N9 table which are used with GE's Optima 660, VCT, Revolution EVO, Lightspeed RT, Discovery 750 HD, Discovery ST, Discovery ST (64 Slice), Discovery ST (128 Slice) PET/CT Systems.

  • Características adicionales

    • Easy to Connect Connector
    • Reliable Operation

    Productos compatibles

    Optima 660

    Optima 660

    Optima 540

    Optima 540

    Revolution EVO

    Revolution EVO

    Lightspeed RT

    Lightspeed RT

    Discovery 750 HD

    Discovery 750 HD

    Discovery ST

    Discovery ST

    Discovery ST (64 Slice)

    Discovery ST (64 Slice)

    Discovery ST (128 Slice)

    Discovery ST (128 Slice)

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
