Grid Sensor Board 5145484-ROHS

5145484-ROHS
5145484
X-Ray
Definium 6000
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Low coefficient of thermal expansion (CTE)
  • UL rated 94V-0
  • Compatible with standard and lead-free assembly
  • Good strength-to-weight ratio

Descripción del producto

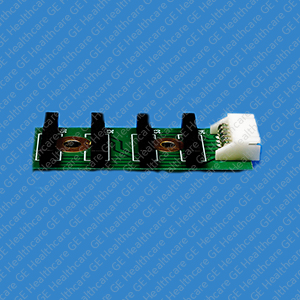

The Grid Sensor Board is comprised of mounting hardware for the proximity sensors, Printed Wiring Board (PWB) for sensors and a 6-pin socket. A proximity sensor is a sensor used to detect the presence of nearby objects without any physical contact. This sensor often emits an electromagnetic field or a beam of electromagnetic radiation. It looks for changes in the field or return signal. This board is tested by measuring the resistance of grid sensor. Place the pointers of multi-meter at Pin-1 and Pin-2 of the connector to measure the resistance of grid sensor. Verify the measured value is below 1 ohm. The circuit board is made up of FR-4, which is a composite material that consists of glass fabric and electrical grade epoxy resin. The material is extremely strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. FR-4 is widely used as an insulator for electrical and electronic applications.

  • Características adicionales

    • Anisotropic conductive film (ACF) bonding
    • RoHS compliant

    Productos compatibles

    Discovery XR650

    Discovery XR650

    Optima XR646

    Optima XR646

    Discovery XR656G2

    Discovery XR656G2

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    5145484
