SL4 display panel

5144726
Computed Tomography (CT)
GE HealthCare Colombia S.A.S.
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Sorry, this item is not in stock with the quantity you selected. Please update the quantity to continue.

Features

  • Six LED indicators
  • Three numeric display blanks
  • CAN (Controller Area Network) Communication
  • Compact design

Other Buying Options


Product Overview

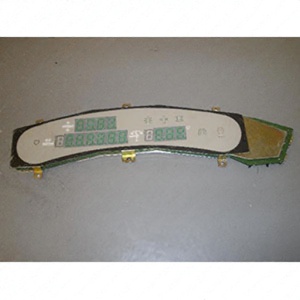

The SL4 Display Panel is used in Gantry User Interface (GUIF) System. The panel also has 6 LED indicators: Cardiac Indicator, Alignment Lights, Cradle Unlatched, Respiratory Indicator, Interference Indicator and X-Ray On. The two Breathing Light Assemblies on the front and rear Gantry covers and one X-Display Assembly on the rear are driven directly by the Display Panel. The assembly comes with a 15 and a 9 pin D type connector for the interfaces. The Display Panel will drive three other smaller display devices also located on the Gantry covers. The Display Panel will be able to display numeric information for the user through seven segment displays. It has three numeric display blanks: Tilt Position with 4 seven segments, Elevation Position with 4 seven segments and Cradle Position with 7 seven segments.. This Assembly can be used with Brightspeed Edge, Brightspeed Excel, Brightspeed Elite and Discovery 670 systems.

  • Additional Features

    • Reliable performance
    • RoHS Compliant

    Compatible Products

    Brightspeed Edge

    Brightspeed Edge

    Brightspeed Excel

    Brightspeed Excel

    Brightspeed Elite

    Brightspeed Elite

    Discovery 670

    Discovery 670
