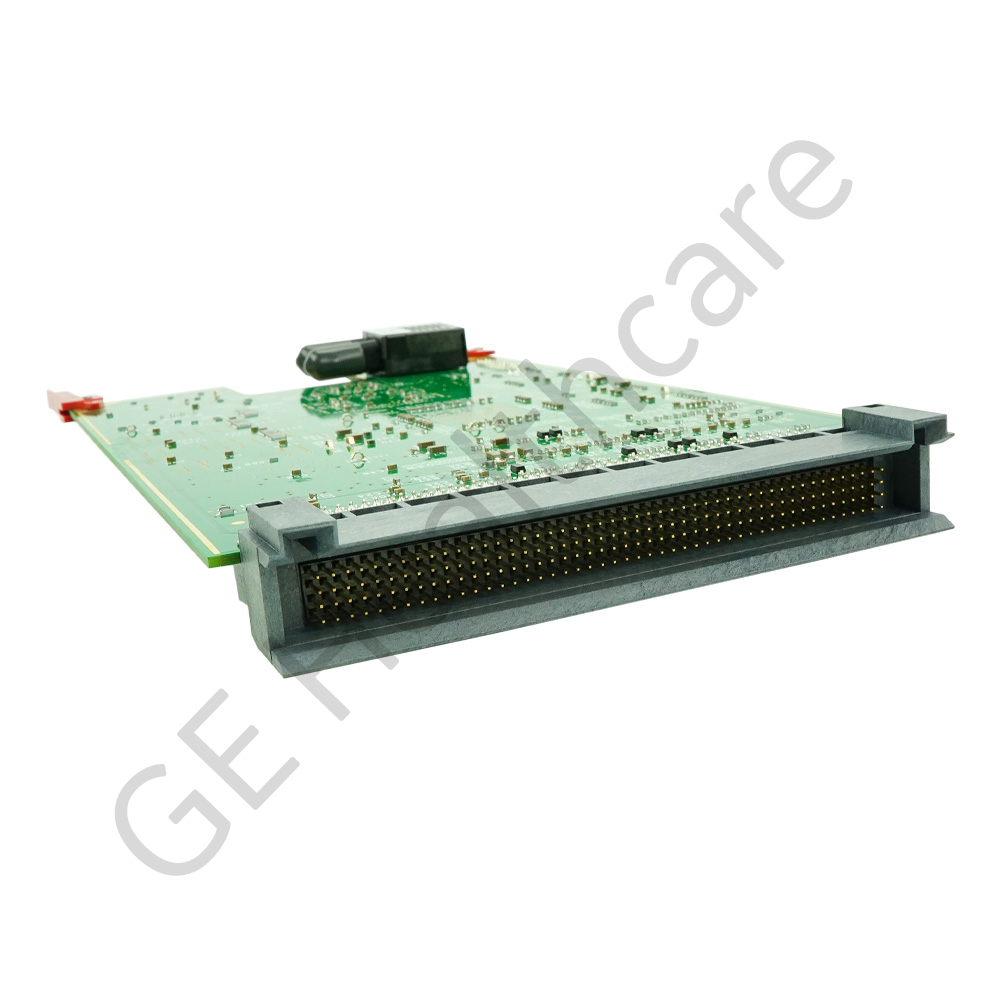

CTe GDAS DCP Card Assembly - RoHS
5122521-2 | |
5122521 | |
Computed Tomography (CT) | |
Brivo CT315 | |
GE HealthCare Colombia S.A.S | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- Field Replaceable Unit (FRU)
- In System Programming (ISP) function
- Interfaces On-Gantry Processor (OGP) Board for Rx reception and scan completion via RS422
- Monitors DAS subsystem for various faults
Descripción del producto
The GDAS DCP is the main control board for the CT/e, 1/2 -Slice GDAS (Global Data Acquisition System). It packages all the converter card data into a single high-speed serial data stream and sends it to Operator Console (OC), compatible with the receive function on the DASIFN at 95/110Mbps slip-ring communication. DCP communicates with OGP to get scan commands, status and error log information. It sends commands to converter cards through CAN protocol. Also it provides an X-Ray beam tracking in dual slice system to ensure the right dose for A slice and B slice on the detector. This board is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. The DCP card is mounted on CT Gantry DAS left backplane PWA, with chassis box assembly cover, and peer with GDAS converter card. This board can be used with Brivo 315 and Brivo 325 systems.
Características adicionales
- Beam tracking function for 2 slice system
- RoHS Compliant
Artículo equivalente:
Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente
Artículo equivalente | Detalles de parte |
---|---|
5122521 | 5122521 |
