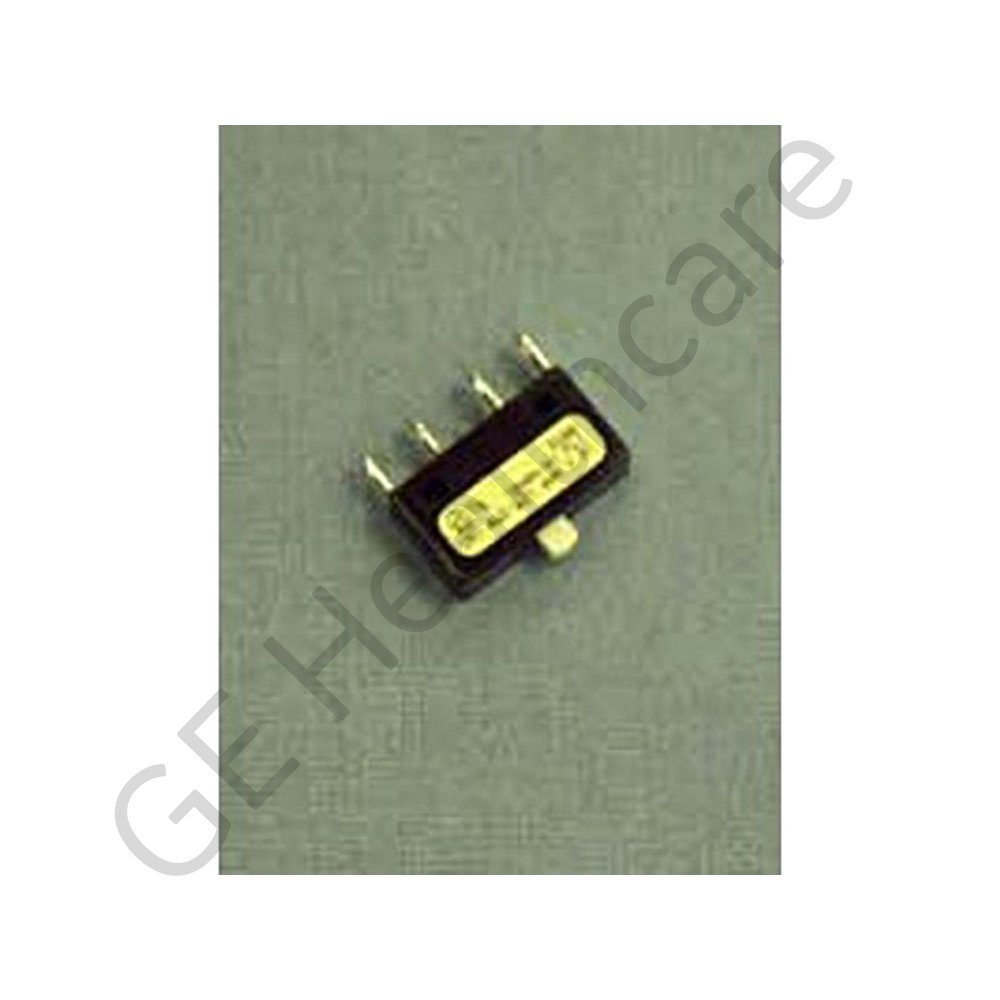

SPDT-DB Snap Action Switch
46-303827P1 | |
82943 | |
X-Ray | |
RFX/SFX | |
GE HealthCare Colombia S.A.S | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- Compact Dimensions
- SPDT-DB (Single Pole Double Throw- Double Break)
- Up to 10 amps switching capability
- High contact pressure
Descripción del producto
This switch is miniature in size and feature up to 10 amps switching capability of 100,000 cycles. The snap-action contact mechanism makes a specified motion with a specified force to open/close a circuit with an actuator outside the enclosure. It uses the mechanism by which the moving contact quickly moves from one fixed contact to another fixed contact with minimal relation to the speed at which the switch is operated. The mechanical life of the switch is one million cycles. Its terminals are sealed against solder flux entering the switch and are bright acid tin plated for excellent solderability. This Switch features a double break snap action mechanism.
Características adicionales
- Precision operating points
- Long Service Life
- Button accepts actuation directly from cam
- Constructed in accordance with MIL-PRF-8805/7
- RoHS Compliant
Artículo equivalente:
Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente
Artículo equivalente | Detalles de parte |
---|---|
82943 | 82943 |
