Table down Linkage Pivot

46-271195P9
Resonancia Magnética
Brivo 355
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • High Corrosion Resistance
  • High Tensile & Ultimate Strength
  • Wide Operating Temperature Range
  • Chamfered Edges

Descripción del producto

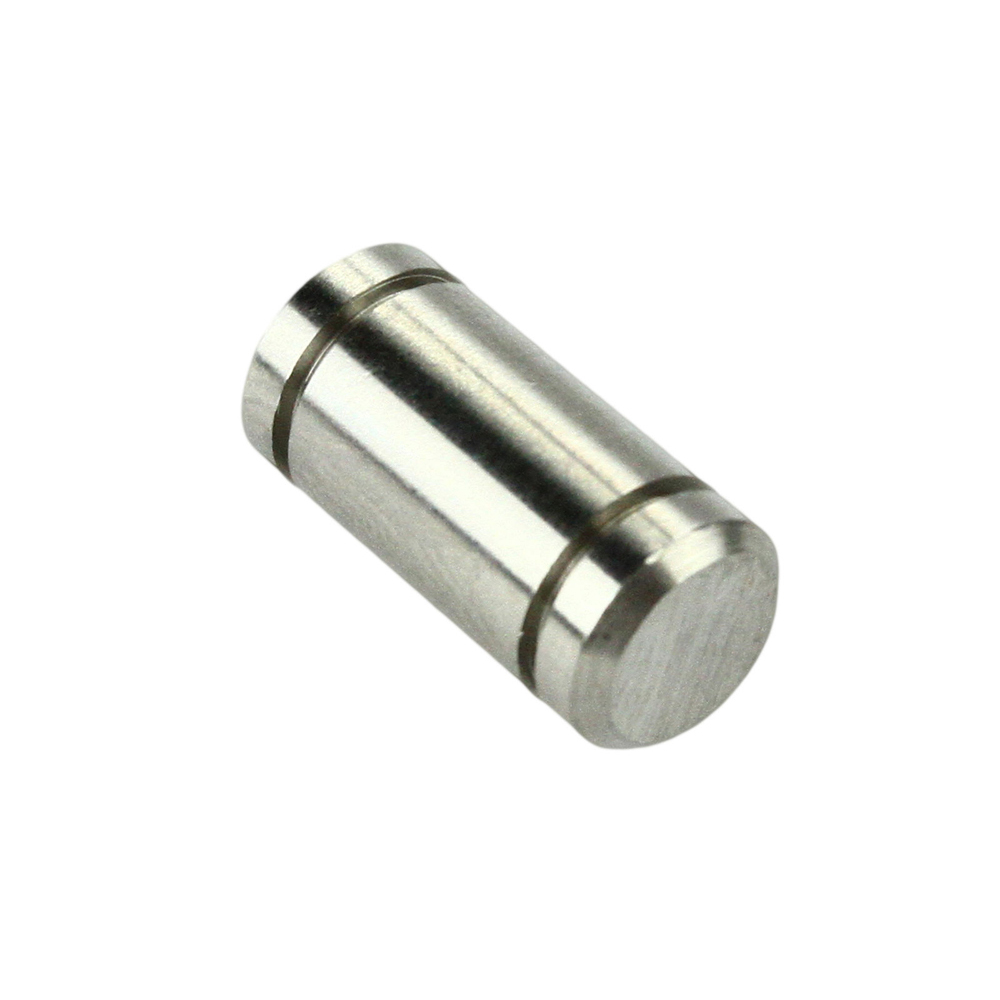

The Down Table, Linkage Pivot, Grooved rod is a 0.66 inch long cylindrical rod which is made up of stainless steel. This linkage pivot rod retains the parts of the patient table assemblies in a fixed position, maintain alignment between different adjoining parts or to join the different components of the patient table. It is used in the dock assembly of tables of GE's Brivo 355, Discovery 750 Surgical 3.0T, Discovery 750 GEM3.-T, Discovery 750 3.0T, Optima 360 1.5T, Signa Excite 1.5T, Signa HD 1.5T, Signa HD 3.0T, Signa HDe 1.5T, Signa HDxt 1.5T and Signa HDxt 3.0T Magnetic Resonance Imaging Systems. The Stainless Steel material of this down shaft gives it good corrosion resistance, possess high tensile and ultimate strength. The pin has 2x machined grooves of 0.253 inch diameter and 0.032 inch wide, these grooves are provided on each end of the rod with an intent to lock the rod in the assemblies using E-rings, circlips etc. The edges of the rod are chamfered at 45 Degree for convinient insertion during installation. The Non-Magnetic nature of this down table, linkage pivot rod makes it an ideal choice for use with MRI systems. The item will be shipped in suitable packaging to provide adequate protection during transit.

  • Características adicionales

    • Parallel type Design
    • Durable & Long Lasting
    • Non-Magnetic
    • With Grooved Ends

    Productos compatibles

    Brivo 355

    Brivo 355

    Discovery 750w 3.0T WU_0753

    Discovery 750w 3.0T WU_0753

    Discovery 750w GEM 3.-T

    Discovery 750w GEM 3.-T

    Discovery 750 3.0T WU_0755

    Discovery 750 3.0T WU_0755

    Optima 360 1.5T

    Optima 360 1.5T

    Signa Excite 1.5T

    Signa Excite 1.5T

    Signa HD 1.5T

    Signa HD 1.5T

    Signa HD 3.0T

    Signa HD 3.0T

    Signa HDe 1.5T

    Signa HDe 1.5T

    Signa HDx 1.5T

    Signa HDx 1.5T

    Signa HDx 3.0T

    Signa HDx 3.0T

    Signa HDxt 1.5T

    Signa HDxt 1.5T

    Signa HDxt 3.0T

    Signa HDxt 3.0T
