120V POWER I F BOARD --RoHS

2374418-2
2374418
Computed Tomography (CT)
Optima CT580 RT/W
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Power Interface Board Cable Harness
  • Reilable Performance
  • Easy to connect & install
  • 14 AWG Wires pairs

Descripción del producto

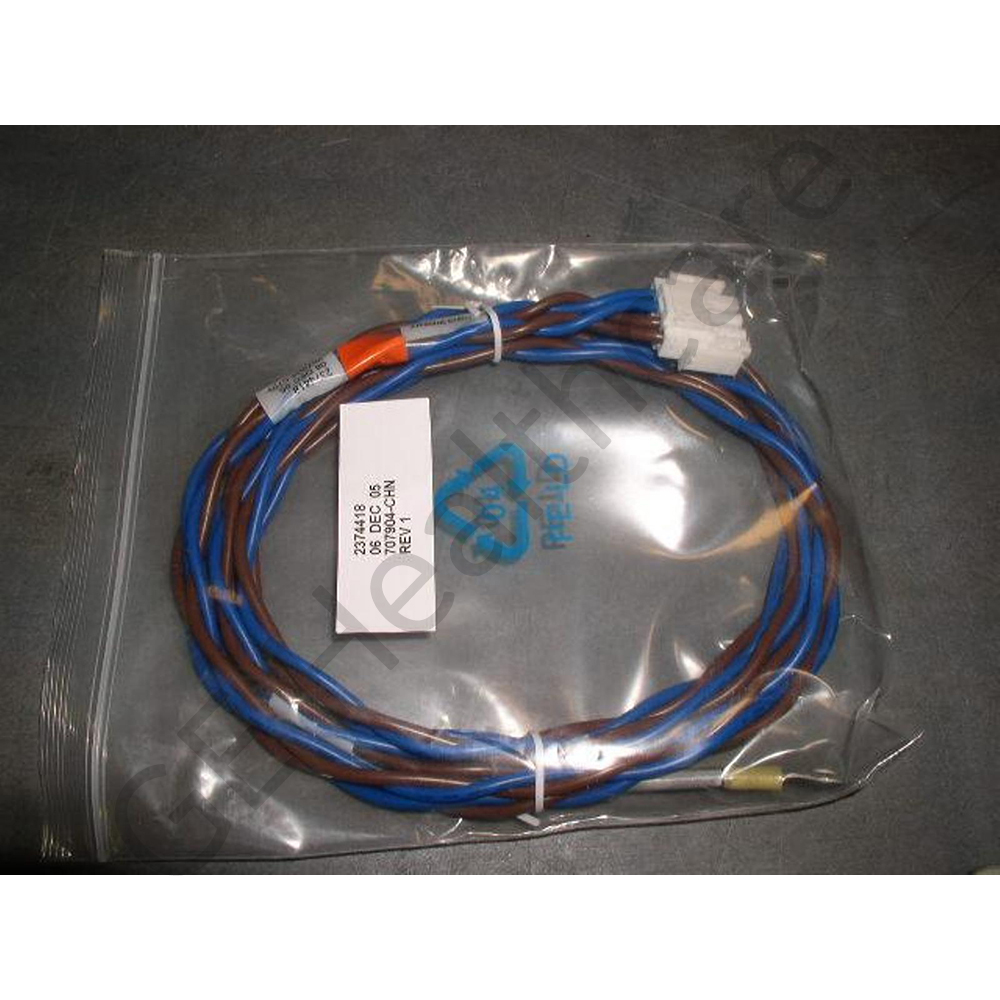

This Power Interface Board cable harness assembly is used in the Star Gate (SG) Vertical Assembly of the CT system's Gantry. The harness comprises of high quality components and have 2 pairs of 14 AWG UL standard wires, a 4 position Mate-N-Lock connector at the Power Interface Board side, the harness splits into two 65mm long connector cables near the slip ring connection end. The slip ring connectors are insulated Spade Terminals that can be connected using appropriate screws. This cable assembly is designed to supply 120 VAC & Neutral from the interface board to the slip rings. For easy identification, the cable harness comes with labelling information stating the correct sides with color coded Blue & Brown wires depicting Neutral & Phase respectively. This part is RoHS Compliant and can be used in the common gantry assembly of GE's Computed Tomography (CT) systems.

  • Características adicionales

    • Labelling Information for easy identifiaction
    • RoHS Compliant

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    2374418

    CABLE, POWER INTERFACE BO
