Optics Control Board 2273991
| 2273991 | |
| X-Ray | |
| Precision 500 w/ Flashpad | |
| GE HealthCare Colombia S.A.S | |
| GE HealthCare | |
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.
Características
- Consumes the lower power than electrical system
- Handle low speed data and high speed signals
- Compact
- Reduce the surface area of board by 20%
Descripción del producto

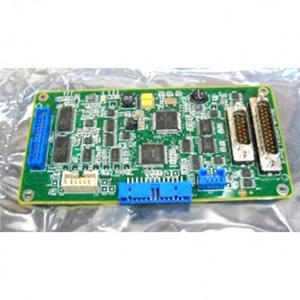

The Optics Control Board combines the optical and copper paths on the same board. The copper paths are used to distribute the power and low speed data, whereas the optical paths are used to handle the high speed signals and data. The control board is the Optical Control Board (OCB) of the LEELOO CCD platform. The OCB software supports two types of MCU: MC68HC912D60 and MC68HC912D60A. The 68HC912D60 microcontroller unit (MCU) is a 16-bit device available in two package options, 80-pin QFP and 112-pin TQFP. The 68HC912D60 has a full 16-bit data paths throughout. The OCB software uses 60K flash EEPROM to store programs, 1K EEPROM to store the parameter database, ECT to accumulate AEC pulses, MSCAN to do CAN communication between OCB and SYSTEM, ATD0 to get the potentiometer voltage of IRIS, NDF, Rotation and One SCI to communicate with II power supply, and the other controlling ADCM. OCB uses the continuous potentiometer signals as feedback. OCB uses a temperature sensor to get the temperature around the board. If the temperature is too high (> 60.0° C), OCB will send a CAN message to alert system. This optical circuit board is used to reduce the surface area of the board by 20% and also reduce the number of layers of the board by 50%.
Características adicionales
- Reduce the number of layers of board by 50%
- ECT used to accumulate AEC pulses
- ATD0 used to get potentiometer voltage of IRIS
- 68HC912D60 / 68HC912D60A has an Enhanced Capture Timer module
- Four input capture channels
- Four 8-bit pulse accumulator
- 16-bit modules down-counter with 4-bit prescaler
- Four user selectable delay counters for input noise immunity increase
