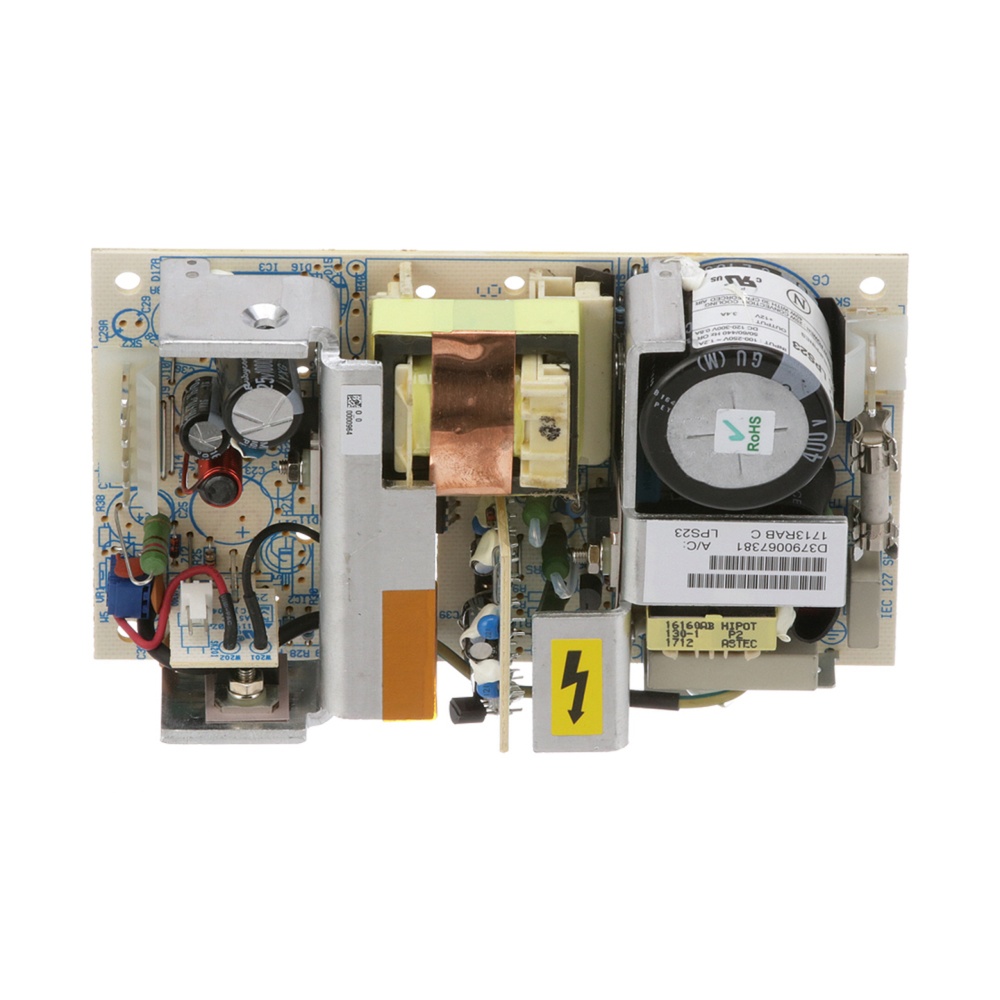

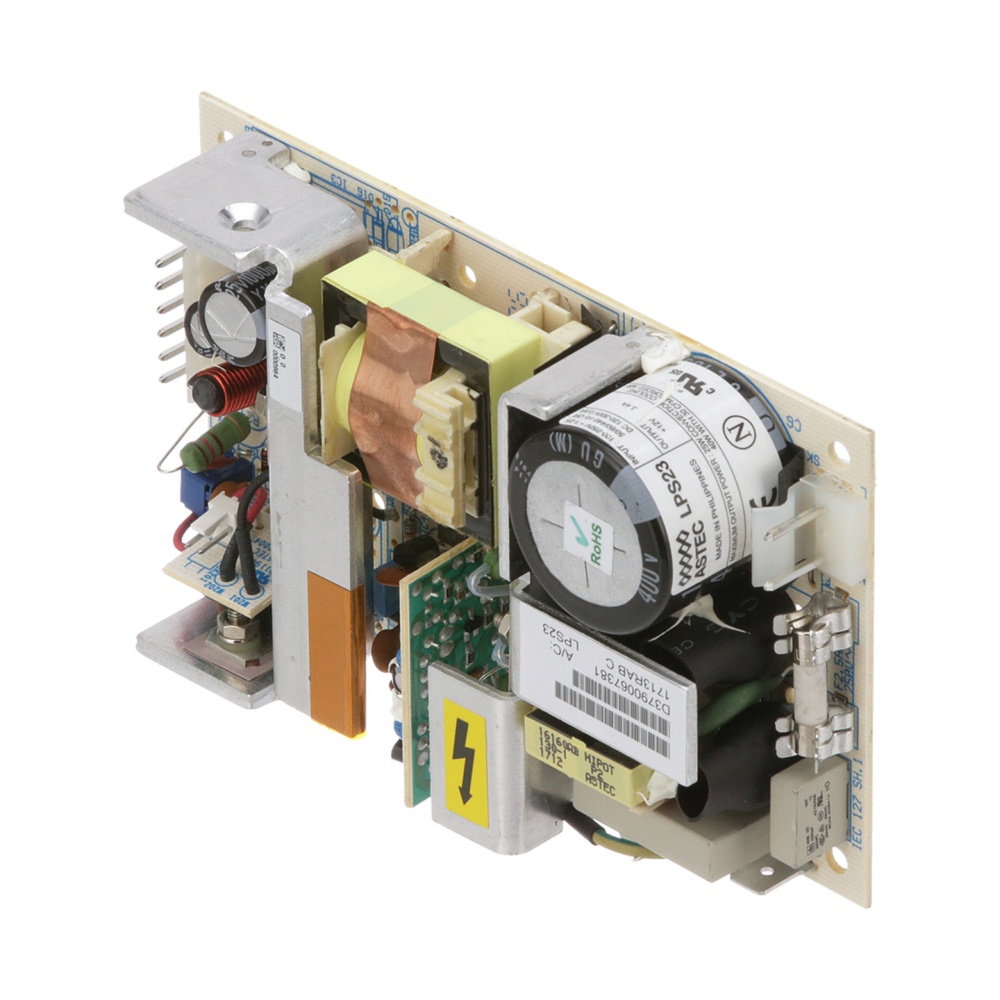

12V DC, Open Frame Switch Mode Power Supply

2228060
Mammography
Seno Advantage
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Accepts universal input 85-264 VAC
  • 3" x 5" footprint
  • Remote sense on main output
  • Built-in EMI filter

Descripción del producto

This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. It is an open frame, 25 W continuous output power supply with +12 VDC output. The power supply accepts universal input of 85-264 VAC or 120-300 VDC. This power supply has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation. This compact switch-mode power supplies feature main output overvoltage protection and remote sense, with short-circuit protection on all outputs. It provides 25 watts of output power with free air convection cooling, and 39.6 watts with 30 CFM of forced air. This power supply is compatible to be used with GE's Senographe Essential, Senographe Essential E and Seno Advantage Mammography Systems.

  • Características adicionales

    • Low output ripple
    • Adjustable main output
    • Overvoltage protection
    • Overload protection
    • 110 KHz switching frequency
    • Compact Size
    • RoHS compliant
